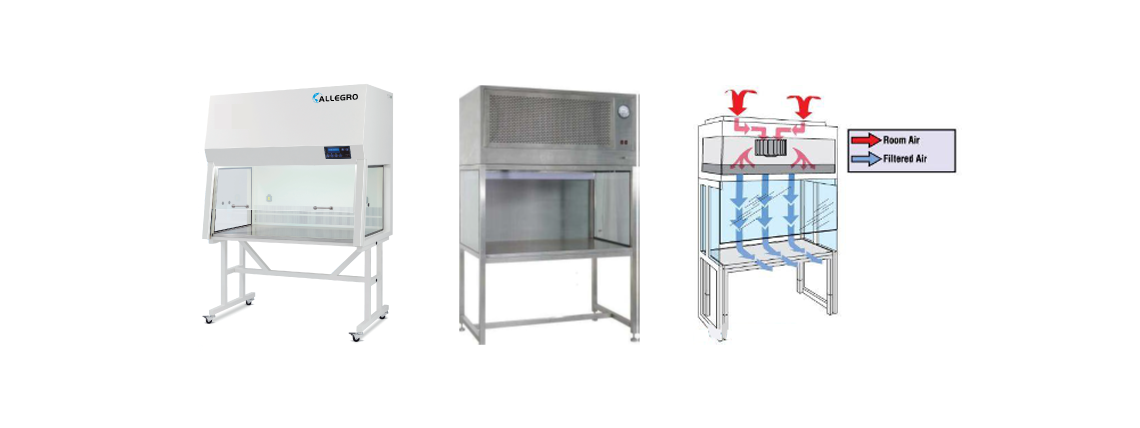

vertical laminar air flow cabinet Manufacturers in India

vertical laminar air flow cabinet, vertical laminar air flow chamber

LAF is design with fine techniques and understanding to provide proven protection for samples and processes. Supplying continues positive pressure. Offering the highest product protection by providing ISO class 5 particle free work area for handling critical processes.

Technical specification

Cabinet fabricated in SS 304/316
Design according to GMP-guideline easy to clean and to disinfect.
Specially design centrifugal or back-ward curved type air blower
Magnehelic differential pressure gauge
Soft touch led controller for blower/light/pressure display
In build hour meter
Air flow direction: vertical
Mini-plate HEPA filters H-14, 99.997% down to 0.3µ.
Pre-filter non-woven, HDPE mesh EU-04 95% efficiency 5 µ
UV light.
Florescent light
PAO port/atmospheric nozzles
Sound level minimum 65db on scale
Power supply single phase 220v 50 HZ

Model no	HEPA Size	Working Area	Over all Dimension
Vertical	L x W	W x D x H	W x D x H
AGPL/LFV01	610 x 610	610 x 610 x 610	710 x 1060 x 1450
AGPL/LFV02	915 x 610	915 x 610 x 610	1015 x 1060 x 1450
AGPL/LFV03	1220 x 610	1220 x 610 x 610	1330 x 1060 x 1450
